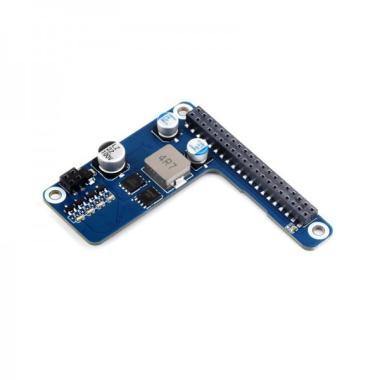

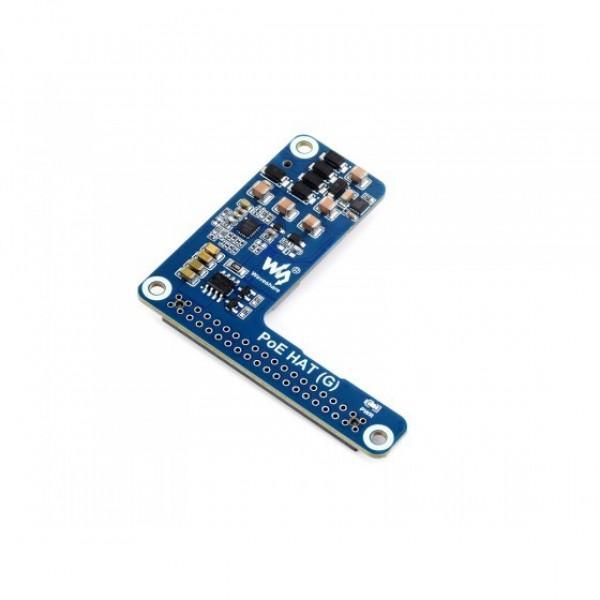

A Power over Ethernet (PoE) HAT-tel az ethernet kapcsolaton keresztül táplálhatja a Raspberry Pi-t. A modul alkalmas a Raspberry Pi 5-höz.
Megjegyzés: A PoE funkció használatához olyan kapcsolóra vagy útválasztóra van szükség, amely támogatja a PoE-t vagy egy PoE injektort. További információ: Wiki
| General | |
|---|---|
| Brand | Waveshare |
| Manufacturer model/SKU | 27670 |
| Features | PoE |
| General physical appearance | |
| Main color | Blue |
| Weight [g] | 22 (module + pin headers) |
| Dimension X [mm] | 65 |
| Dimension Y [mm] | 65 |
| Mounting options | Pin headers Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3 |
| Form factor | Module (general) Raspberry Pi SBC layout/HAT (only suitable for Raspberry Pi 5) |
| Voltage converter | |
| Chip/SoC | MP9928 |
| Voltage converter type | Buck |
| Conversion | DC-DC |
| Isolated | No |
| Output voltage type | Fixed |
| Minimum input voltage [V DC] | 38 |
| Maximum input voltage [V DC] | 57 |
| Minimum output voltage [V DC] | 5 |
| Maximum output voltage [V DC] | 5 |
| Maximum output current [A] | 5.0 |
| Maximum output power [W] | 25 |
| Safety features | Short circuit Overcurrent (output) Temperature Over voltage (output) |
| Connectors | |
| Input voltage connector(s) | Pin header female (2.54mm) |
| Output voltage connector(s) | Pin header female (2.54mm) |
| Package contents | |
| Package contents | 1x Power over Ethernet HAT (F) 1x Female pin header (long) 2x20p 1x Female pin header (long) 2x2p 4x Spacer 8x Bolt |
