Garancia: 5 év.
| HÁLÓZAT | |
|---|---|
| Szabványok és protokollok | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| ÁLTALÁNOS | |
|---|---|
| Tanúsítványok | FCC, CE, RoHS |
| Környezet | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
| PACKAGE CONTENTS | |
|---|---|

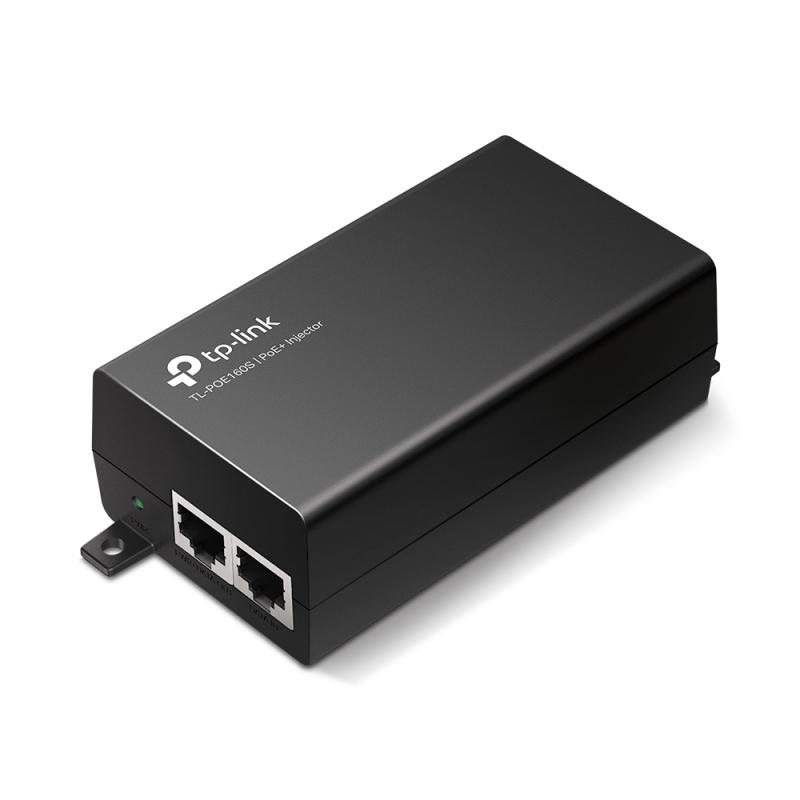

| Package Contents | PoE+ Injector TL-POE160S Installation Guide Power Cord RJ45 Cable Wall Mounting Kits |
| HARDVER JELLEMZŐK | |
|---|---|
| Hálózati összeköttetés | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Energiafelvétel | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
| Alapfunkció | Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| LED jelzőfény | ON: Supplying power normally OFF: No power supply |
| Méretek (Sz x Mé x Ma) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
