Garancia: 5 év.
| HARDVER JELLEMZŐK | |
|---|---|

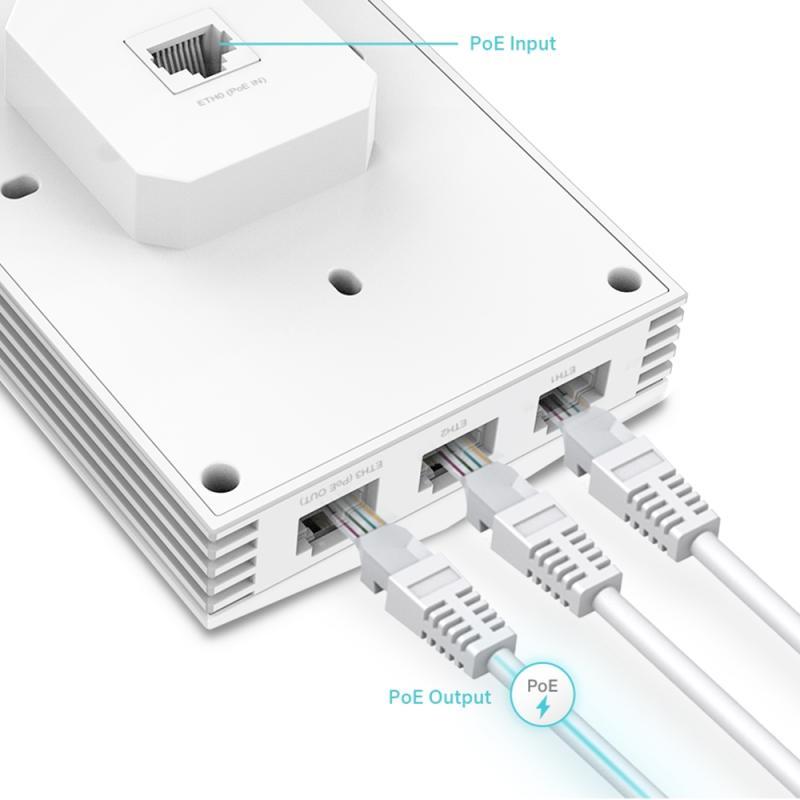

| Csatlakozások | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.) |
| Fizikai biztonsági zár | No |
| Gomb | Reset, LED |
| Hálózati tápegység | 802.3af/at PoE |
| Energiafelvétel | • EU: 12W (802.3at PoE, PoE Out off) • US: 12.6W (802.3at PoE, PoE Out off) |
| Dimensions | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi |
| Felszerelés | Wall Plate Mounting (Kits included) |
| VEZETÉK NÉLKÜLI JELLEMZŐK | |
|---|---|
| Maximum Number of Wireless Clients | 100+ △ |
| Wi-Fi sztenderd | IEEE 802.11ax/ac/n/g/b/a |
| Frekvencia | 2.4 GHz and 5 GHz |
| Adatátvitel | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 574 Mbps |
| Vezeték nélküli funkciók | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming§ • Beamforming • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Vezeték nélküli biztonság | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Átviteli teljesítmény | • CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz band1 & 2, EIRP) <26 dBm (5GHz band3, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz) |
| VEZÉRLÉS | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Riasztás e-mailben | Yes |
| LED ki/bekapcsolás | Yes |
| Mac-cím alapú vezérlés | Yes |
| SNMP | v1, v2c, v3 |
| Syslog helyi/távoli | Local/Remote Syslog |
| SSH | Yes |
| Webes felelületű vezérlés | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site vezérlés | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| EGYÉB JELLEMZŐK | |
|---|---|
| Tanúsítványok | FCC, RoHS |
| Csomagolás tartalma | • AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall • Installation Guide • Mounting Kits |
| Rendszerkövetelmény | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Környezet | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
